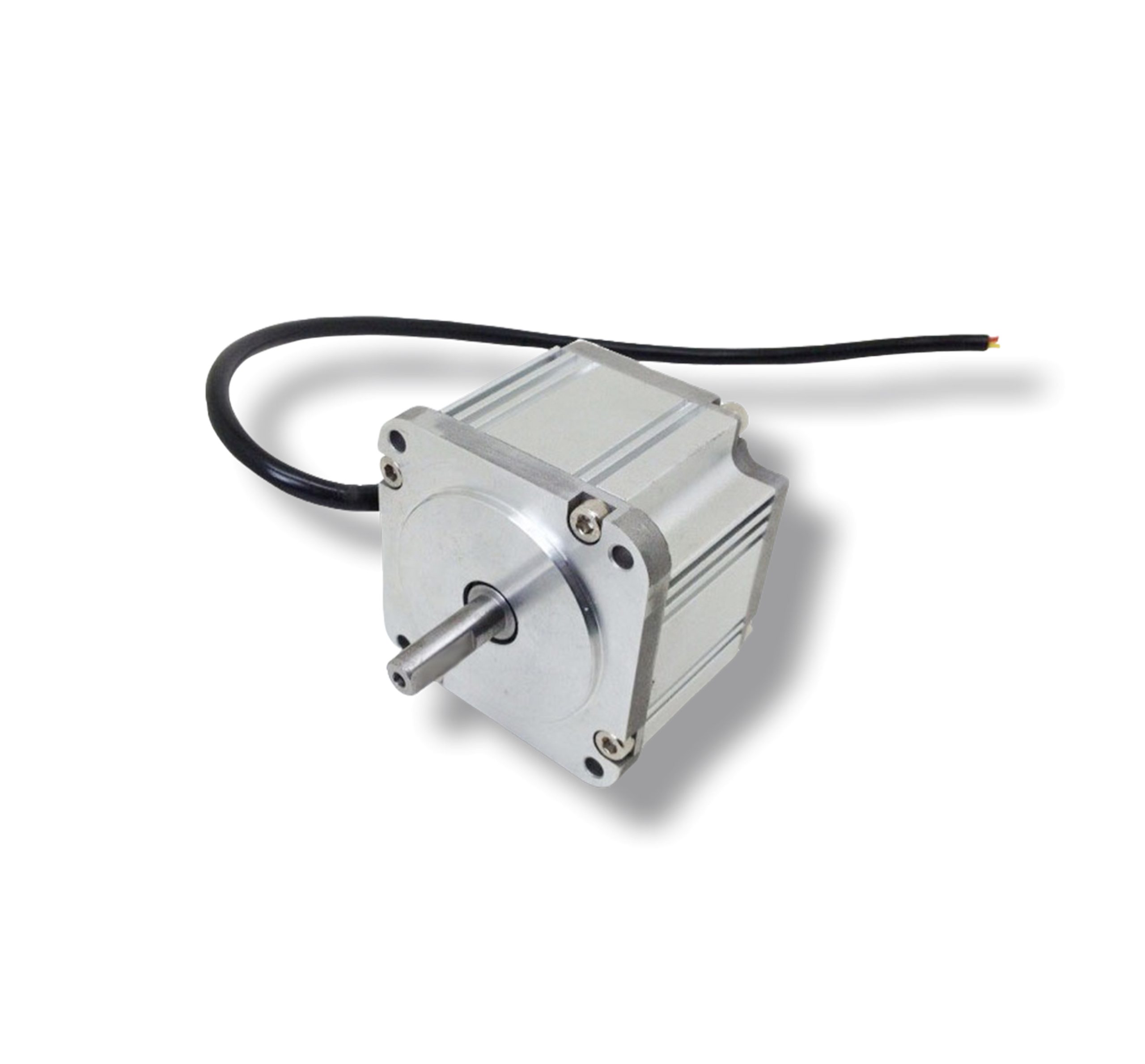

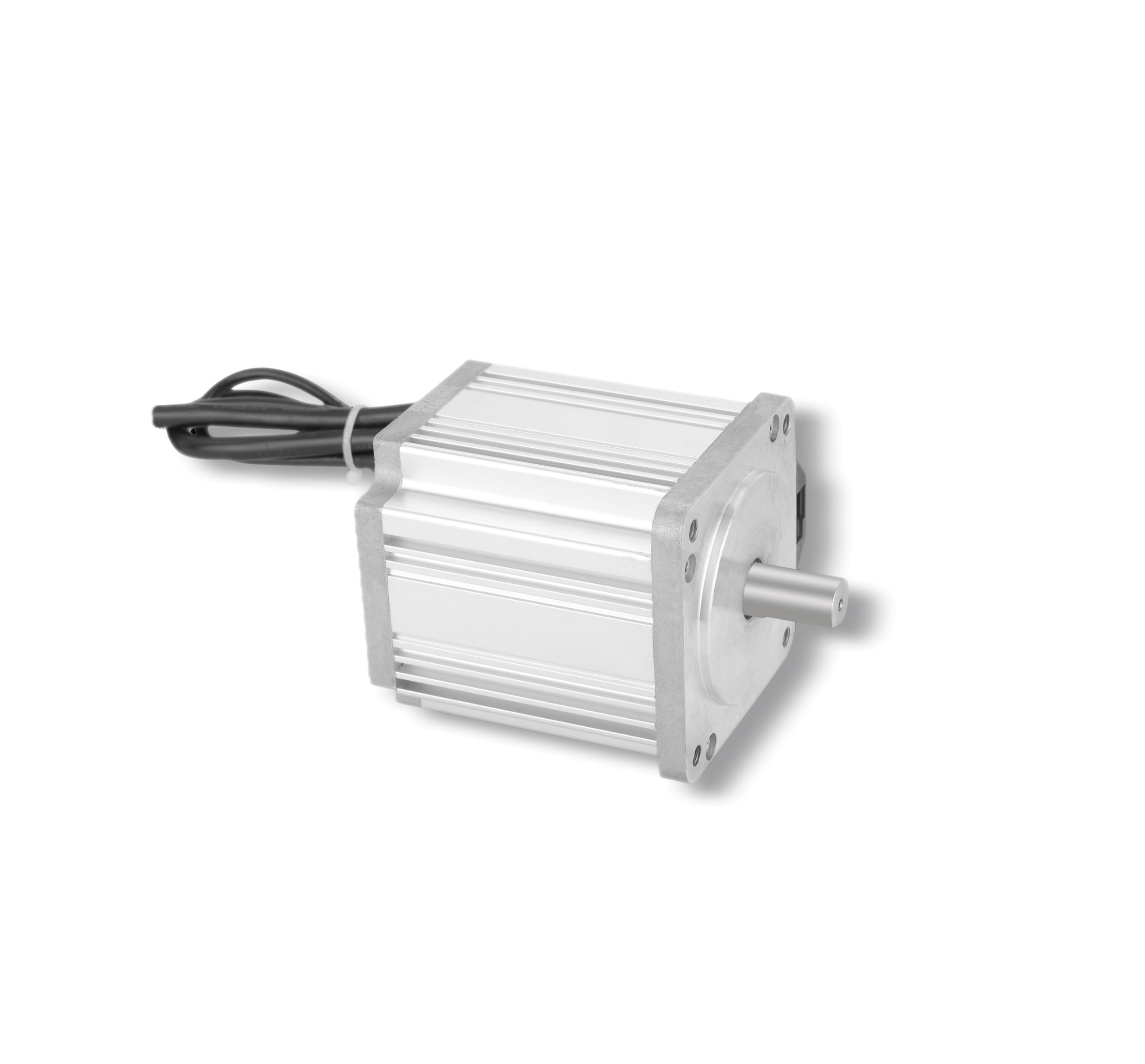

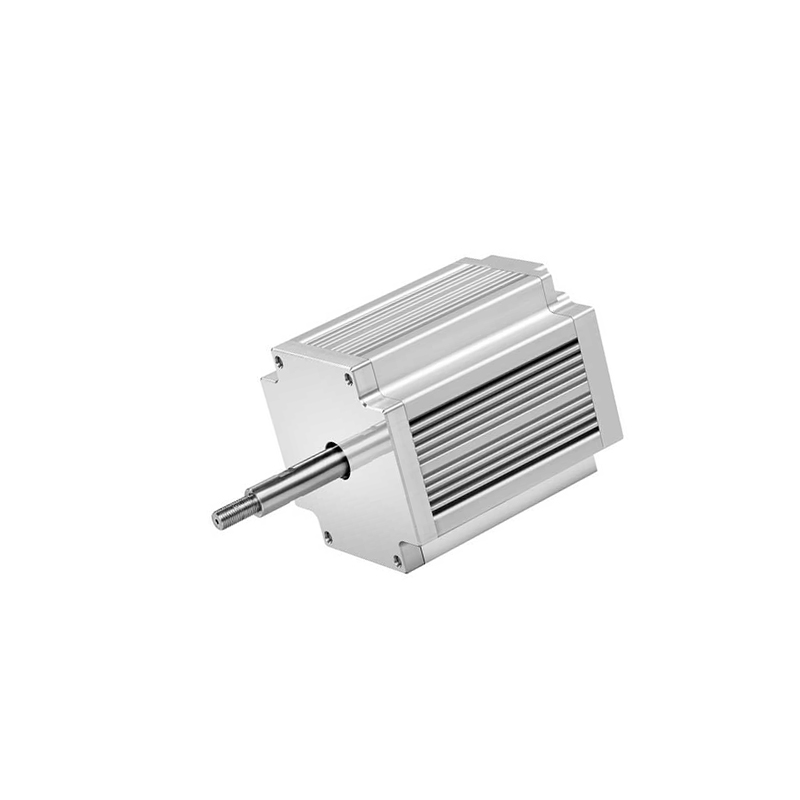

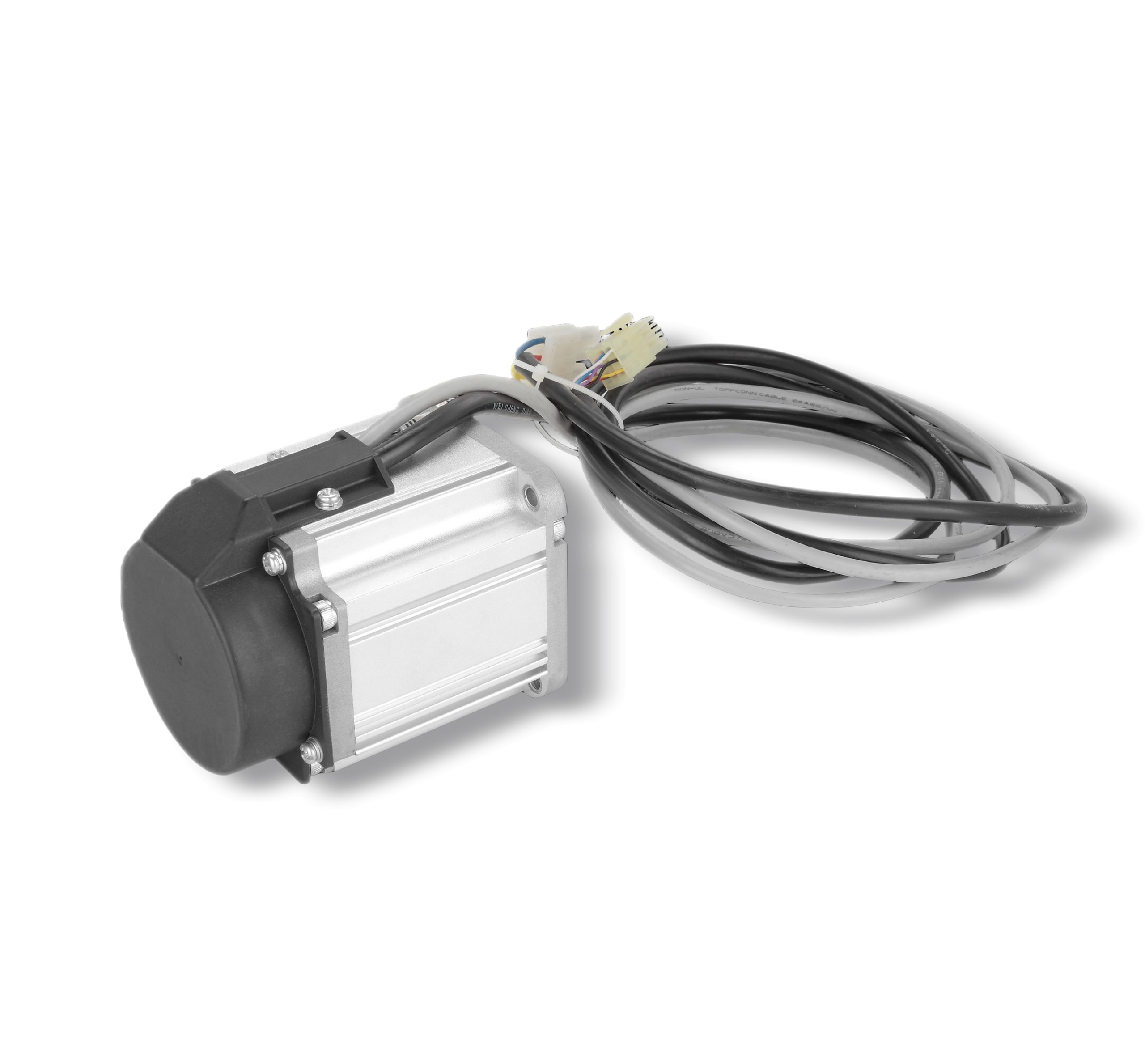

IBL-76SW
12~220 V Customizable BLDC Motor Brushless Dc Motor
Rated Voltage: 12V / 24V / 36V
No Load Speed: 2000 rpm – 6000rpm
Output Power: Customized
Warranty: 1 year
Customized: Accepted
Application:
1.Industrial Equipment
2.Transmission System
3.Positioning And Actuation Systems
4.Toy Model
5.Medical Equipment
6.Home Electric Appliance
7.Power Tools
8.Gardening Tools
Details
APPLICATION:
1. Industrial equipment
2. Transmission system
3. Positioning and actuation systems
4. Toy Model
5. Medical Equipment
6. Home Electric Appliance
7. Power tools
8. Gardening tool
CUSTOMIZED FEATURE:
• Integrated or extra position drive electronics. • Different control function such as speed adjustment/
• Different electronic performance such as voltage/ brake and etc.
speed/ torque and etc. • The mechanical properties such as shaft dimension/
• With or without hall sensor. flange/ height and etc.
• Drive electronics protection function. • Different bearings and gearbox are available
DIMENSIONS:

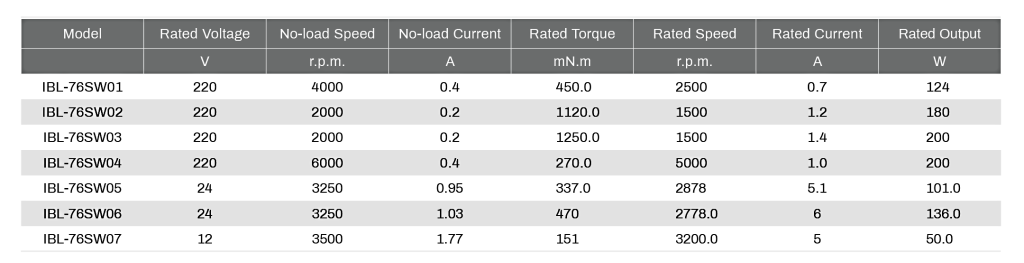

TECHNICAL DATA:
